Walk-in Nitrogen-Filled Oxygen-Free Precision Oven | High-Precision Industrial Environmental Test Chamber for Anti-Oxidation Heat Treatment & Reliability Testing

ブランド名:	HeJin
モデル番号:	HJ-EMTC-020
Moq:	1セット
価格:	Negotiatable
支払条件:	LC、T/T
供給能力:	月5セット

詳細情報

製品説明

評価とレビュー

詳細情報

起源の場所:

中国

証明:

Third party calibration certificate(cost additional)

火力:

24KW

電源:

AC380V、三相、50/60Hz

必要な空気源:

高純度窒素・圧縮空気

観察窓:

ドアあたり 1 セット、270mm × 325mm、三層中空電熱ガラス、曇りなし操作

パッケージの詳細:

合板

ハイライト:

nitrogen-filled precision oven

oxygen-free industrial test chamber

anti-oxidation heat treatment oven

製品説明

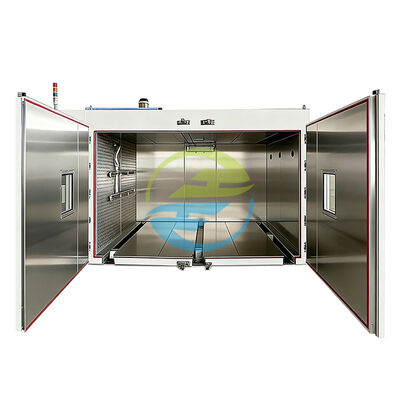

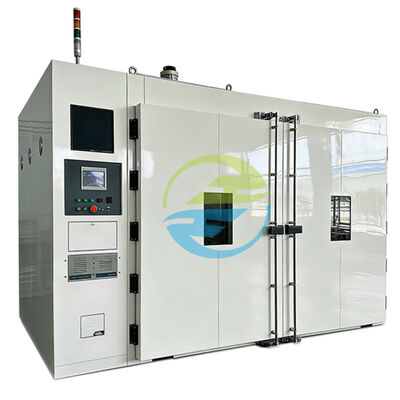

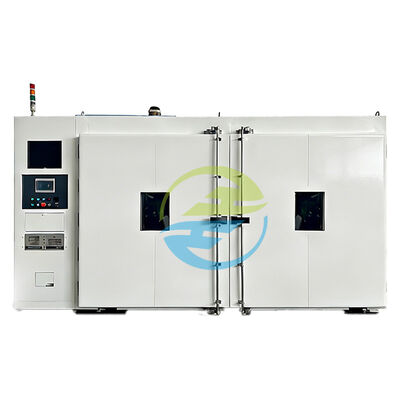

Walk-in Nitrogen-Filled Oxygen-Free Precision Oven

HeJin's walk-in nitrogen-filled oxygen-free precision oven delivers ultra-uniform, low-oxygen heat treatment for automotive, electronics, and aerospace components. As a professional environmental test chamber source manufacturer, we provide custom solutions to boost product reliability, reduce scrap rates, and meet global industry standards.

Product Overview

Our Walk-in Nitrogen-Filled Oxygen-Free Precision Oven is a state-of-the-art industrial precision heat treatment and environmental test system designed to create a high-temperature, low-oxygen/oxygen-free, clean, and uniformly distributed temperature field for large-scale or batch workpieces.

The system uses high-purity nitrogen (≥99.99%) to displace ambient air, creating a fully inert protective atmosphere that eliminates oxidation, discoloration, and surface degradation of sensitive components during high-temperature drying, curing, heat treatment, and reliability testing. The walk-in design features a spacious interior that accommodates manual entry or trolley-mounted batch workpieces, making it ideal for both small-batch prototype validation and high-volume mass production.

Product Features & Core Benefits

Precision Oxygen-Free Atmosphere Control: Achieves ultra-low oxygen content down to ≤10ppm (standard ≤100ppm) via high-efficiency nitrogen displacement technology, preventing oxidation and surface degradation. Equipped with precision nitrogen flow control and real-time oxygen monitoring.
Industry-Leading Temperature Precision: Intelligent digital temperature control system with accuracy of ±0.1℃ to ±1℃ and temperature uniformity of ≤±2℃ across the entire chamber. Supports programmable temperature and atmosphere linkage control.
Spacious Walk-In Design: Generous interior capacity accommodates large workpieces or high-volume batch processing with trolley-compatible design. User-centric double-door structure with ergonomic layout for easy operation and maintenance.
Robust Multi-Layer Safety Systems: Dual protection design with explosion-proof vents and explosion-proof door structure. Independent over-temperature alarm system, short-circuit protection, over-current protection, and real-time fault monitoring.
Durable, High-Quality Construction: Exterior cabinet fabricated from high-quality cold-rolled steel with durable color electrostatic spray finish. Interior chamber and components made of premium SUS304 stainless steel for contamination-free environment.

International Compliance & Reference Standards

IEC 60068-2-2:2007 (Environmental Testing – Part 2-2: Tests – Test B: Dry Heat)
ISO 9001:2015 Quality Management System
GJB 360.8-87 (Test Methods for Electronic and Electrical Components – High Temperature Life Test)
GJB 150.3A-2009 (Military Equipment Laboratory Environmental Test Methods – Part 3: High Temperature Test)

Technical Specifications

Internal Chamber Dimension (WDH)	3050mm * 2250mm * 1650mm
External Overall Dimension (WDH)	4100mm * 2480mm * 2200mm
External Wall Material	High-quality cold-rolled steel plate, 1.2mm thickness, double-sided color electrostatic spray finish
Internal Chamber Material	SUS304 stainless steel, minimum 1.0mm thickness, corrosion-resistant and contamination-free
Temperature Control Accuracy	±0.1℃ ~ ±1℃
Temperature Field Uniformity	≤±2℃ across the entire working chamber
Oxygen Content Control Range	≤100ppm (customizable down to ≤10ppm)
Required Nitrogen Purity	≥99.99%

Supported Test & Processing Items

High-temperature oxygen-free drying and dehydration testing
High-temperature life and aging testing under inert atmosphere
Anti-oxidation baking and heat treatment of metal and non-metal materials
Batch workpiece uniform heat treatment process verification
High-temperature environmental reliability testing of components

Frequently Asked Questions

What is the minimum oxygen content of this walk-in nitrogen-filled oven?

Our standard configuration achieves an oxygen content of ≤100ppm. We also offer customized solutions for ultra-low oxygen contents of ≤10ppm for highly sensitive applications.

Can you customize the chamber size and specifications to suit our workpiece dimensions?

Yes, as a professional original manufacturer, we offer full customization of chamber size, temperature range, oxygen content control, and other specifications to meet your unique process and application needs.

What safety protection measures are in place for high-temperature oxygen-free operation?

Our oven features a dual explosion-proof design (explosion-proof exhaust port and explosion-proof door structure), an independent over-temperature alarm system, short-circuit protection, over-current protection, and real-time fault monitoring with automatic shutdown and alarm functions to ensure safe operation.

Which international standards does this environmental test chamber comply with?

This equipment fully complies with IEC 60068-2-2:2007, GB/T 2423.2-2008 (IDT), GJB 150.3A-2009, and GJB 360.8-87 standards, and is manufactured by our company under an ISO 9001:2015 certified quality management system.

What is the temperature control accuracy of this precision oven?

This oven adopts an intelligent digital temperature control system with an accuracy of ±0.1℃ to ±1℃, and the temperature uniformity throughout the working chamber is ≤±2℃.

Which industries is this nitrogen-filled oxygen-free oven suitable for?

It is widely used in the automotive, new energy battery, electronics, semiconductor, aerospace, metal processing, pharmaceutical, medical device, and home appliance industries for antioxidant heat treatment, drying, and reliability testing.

Do you provide overseas installation and training services?

Yes, we have a professional technical team that provides on-site installation, commissioning, and operation training services to customers worldwide, as well as remote technical support to handle emergency inquiries.
