High Temperature Vacuum Oven for Environmental Test Chamber | Precision Thermal Vacuum Drying Equipment

ブランド名:	Hejin
モデル番号:	HJ-EMTC-018
Moq:	1セット
価格:	Negotiatable
支払条件:	LC、T/T
供給能力:	毎月10セット

詳細情報

製品説明

評価とレビュー

詳細情報

起源の場所:

中国

証明:

Third party calibration certificate(cost additional)

温度調節器:

PIDデジタル表示器

検出線:

K型

出力:

3~32V

温度範囲:

+30~200℃

制御精度:

±0.5℃

正確性を表示します:

≧±400°/秒

電源:

220V/50HZ

力:

5KW

パッケージの詳細:

合板

ハイライト:

high temperature vacuum oven

precision thermal drying equipment

environmental test chamber with warranty

製品説明

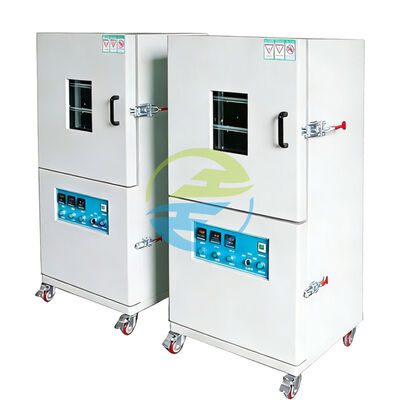

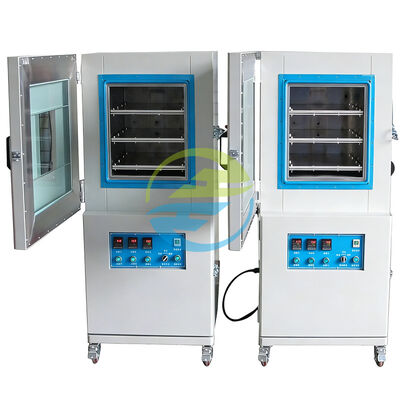

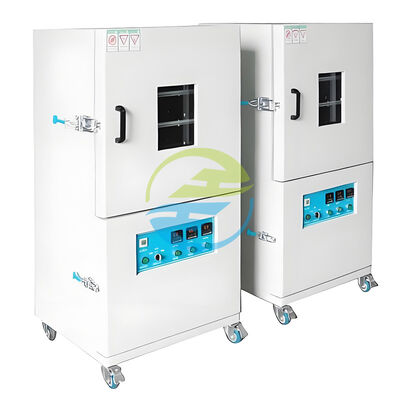

High Temperature Vacuum Oven for Environmental Test Chamber

Precision Thermal Vacuum Drying Equipment designed for vacuum drying, heat treatment, and thermal stability testing under high temperature conditions. This system operates under reduced pressure, allowing effective heat penetration while minimizing oxidation, contamination, and structural damage.

Product Features

Stable Vacuum Environment: Maintains consistent vacuum levels to accelerate moisture evaporation and material degassing, improving drying efficiency and product quality
Uniform High Temperature Heating: Advanced heating elements and optimized airflow design ensure even temperature distribution throughout the chamber
Precision Temperature Control: Digital PID temperature controller provides highly accurate control and stable heating performance
High Strength Stainless Steel Chamber: Corrosion-resistant stainless steel interior ensures long-term durability and contamination-free testing
Excellent Sealing System: Reinforced sealing structure prevents vacuum leakage and guarantees stable operation during extended test cycles

International Reference Standards

IEC 60068-2-2 Environmental testing – Dry heat test method
IEC 60068-2-14 Environmental testing – Temperature change testing procedures
ISO 16750-4 Road vehicles – Environmental conditions and testing for electrical and electronic equipment – Climatic loads
ASTM D4332 Conditioning containers and packaging components for testing

Technical Parameters

Item	Parameters
Internal Dimensions	400 (W) x 400 (D) x 400 (H) mm (Single Box Type)
External Dimensions	700 (W) x 630 (D) x 1320 (H) mm + 110mm wheel height, subject to actual product
Box Structure	One-piece structure
Viewing Window Specifications	W200H250mm
Inner Box Material	304# Stainless Steel Plate, Thickness 3.0mm
Outer Material	Cold Rolled Steel Plate, Thickness 1.0mm, Powder Coating (Off-White)
Insulation Material	High-Temperature Resistant Rock Wool, Excellent Insulation Performance
Casters	Equipped with braked swivel casters for easy movement

For additional technical parameters, please consult our sales representative

Applications

The High Temperature Vacuum Oven is widely used in industries where precise thermal processing and moisture removal are critical, including electronics manufacturing, automotive parts testing, and semiconductor research.

Testing Objects

Electronic components
Lithium battery materials
Automotive parts
Semiconductor wafers
Polymer materials

Frequently Asked Questions

What is the advantage of a vacuum oven compared with a normal drying oven?
A vacuum oven lowers the boiling point of liquids, allowing materials to dry faster and at lower temperatures while preventing oxidation and contamination.
Can the temperature range be customized?
Yes. HeJin supports customized temperature ranges depending on testing requirements.
What industries commonly use this equipment?
It is widely used in electronics manufacturing, lithium battery production, automotive parts testing, semiconductor research, and laboratories.
Is the chamber size customizable?
Yes, chamber volume and structure can be customized based on sample size and testing conditions.
Does the equipment include a vacuum pump?
The vacuum oven includes a vacuum interface. Vacuum pumps can be configured according to user requirements.
